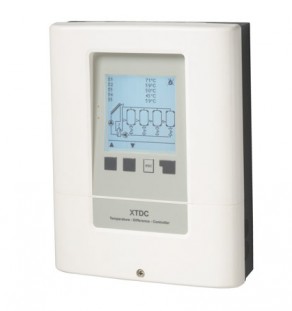

XTDC Series – Solar Panel Controller

Call 1-888-844-3736 for pricing

  • Approved to CSA / UL Standards
  • Simple heat metering
  • 8 x Temperature Sensor Inputs
  • 2 x Triac Speed Control Outputs
  • 2 x VFS / RPS Sensor Inputs
  • 2 x PWM / 0-10V Analog Outputs
  • 1 x Potential Free Relay (NO / C / NC)
  • 4 x Relay Outputs
  • 40+ Operating Programs / Modes
  • 60Hz Supply Voltage / 120VAC
  • 1 x CAN Bus Network Interface
  • 1 x Ethernet Networking Interface (optional)
  • 1 x MicroSD Card Slot
  • 2 Amp Fuse
  • 16 Languages
SKU: TS-10600 Category:

Product Description

The SOREL XTDC series represents 20 years of cumulative knowledge in the design of sophisticated, easy to use electronic controls for solar thermal applications. The XTDC’s powerful and flexible feature set, combined with SOREL’s trademark crystal clear operator guidance system makes the XTDC series a logical choice for virutally any large scale residential, or commerical solar thermal application.

Controller flexibility is further enhanced by the optional use of spare outputs as user definable functions such as heat dumps, heating thermostats, cooling thermostats, anti-legionella protection, boiler return loop heating, solar bypass circuits, etc.

Further expansion capabilities are to be offered using the included CAN Bus networking port for optional accessory modules. A microSD card slot is also included for long term data storage and firmware updates.

More Information

Voltage: 115VAC
Warranty: 2 years

Downloads

Sorel xtdc Product Specifications
